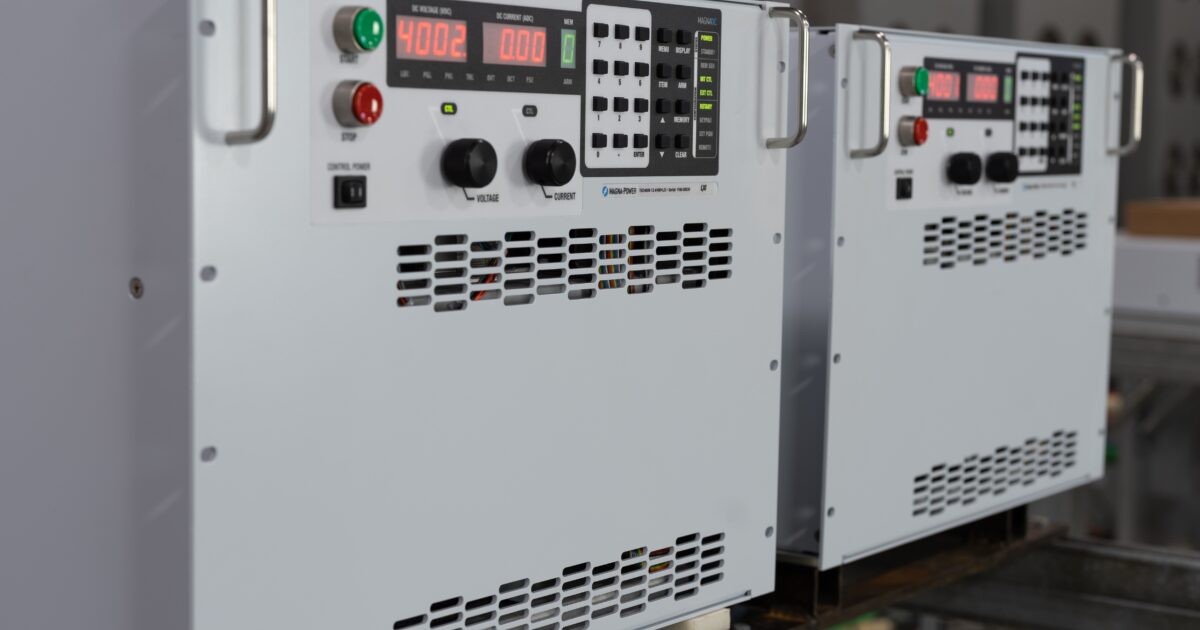

TS Series High Power Programmable DC Power Supply
5 kW to 100 kW Output Power • Up to 6,000 Vdc & 10,000 Adc • Air or Water Cooled
Heavy-Duty Industrial DC Power for Mission-Critical Testing
The Magna-Power TS Series delivers 5 kW to 100 kW of controllable DC power in high-density 3U to 16U rack-mount packaging. Designed for global industrial manufacturers, defense primes, and advanced research facilities, the TS Series offers 279 standardized configurations engineered for rigorous continuous duty.
High Power Density Packaging
Deliver up to 15 kW in 3U, 25 kW in 4U, 50 kW in 8U, and 100 kW in 16U enclosures with optional heavy-duty casters for stand-alone or ATE cabinet integration.
Current-Fed Power Processing
Utilizes Magna-Power's current-fed topology to ensure continuous surge resistance, low stored energy on output bus, and inherent protection into dynamic reactive loads.
Precision & Digital Control
Features ±0.075% programming accuracy, standard SCPI remote interfaces over RS232, 37-pin isolated analog/digital User I/O, LabVIEW, IVI drivers, and optional LXI Ethernet.
Comprehensive Technical Performance Metrics
Standardized engineering specifications for international procurement and system integration evaluation.
| Parameter | Standard Air-Cooled Specs | Water-Cooled (+WC Option) Specs |
|---|---|---|
| Power Capacity Range | 5 kW to 100 kW | 5 kW to 100 kW continuous |
| Voltage Output Window | 5 Vdc to 6,000 Vdc (Floating) | 5 Vdc to 6,000 Vdc (Floating) |
| Current Output Window | 1.2 Adc to 10,000 Adc | 1.2 Adc to 10,000 Adc |
| Programming Accuracy | Voltage & Current: ±0.075% of full scale | Voltage & Current: ±0.075% of full scale |
| Readback Accuracy | Voltage & Current: ±0.2% of full scale | Voltage & Current: ±0.2% of full scale |
| Line & Load Regulation | Line: ±0.004% | Load: ±0.01% of full scale | Line: ±0.004% | Load: ±0.01% of full scale |
| Operating Efficiency | Up to 92% at full output load | Up to 95% at full load (heat dissipated to water) |
| Cooling Requirements | Front/side inlet, rear fan exhaust | Integrated liquid heat exchanger (1.5 - 6.0 GPM) |
| Compliance & Certifications | CE Mark, UKCA, RoHS, EN61010-1, CISPR 22 Class A | CE Mark, UKCA, RoHS, EN61010-1, CISPR 22 Class A |
TS Series Model Range & Chassis Options
Select output voltage and available max current ratings across standard rack chassis sizes.
| Max Voltage | 5 kW (3U) | 10 kW (3U) | 15 kW (3U) | 25 kW (4U/6U) | 50 kW (8U) | 100 kW (16U) | Voltage Ripple |
|---|---|---|---|---|---|---|---|
| 5 Vdc | 900 Adc | 1800 Adc | 2700 Adc | — | — | — | 50 mVrms |
| 10 Vdc | 500 Adc | 900 Adc | — | 2700 Adc | — | 8000 Adc | 40 mVrms |
| 32 Vdc | 150 Adc | 300 Adc | 450 Adc | 781 Adc | 1562 Adc | 3124 Adc | 40 mVrms |
| 100 Vdc | 50 Adc | 100 Adc | 150 Adc | 250 Adc | 500 Adc | 1000 Adc | 60 mVrms |
| 500 Vdc | 10 Adc | 20 Adc | 30 Adc | 50 Adc | 100 Adc | 200 Adc | 220 mVrms |
| 1000 Vdc | 5 Adc | 10 Adc | 15 Adc | 25 Adc | 50 Adc | 100 Adc | 350 mVrms |
| 2000 Vdc | 2.5 Adc | 5 Adc | 7.5 Adc | 12.5 Adc | 25 Adc | 50 Adc | 450 mVrms |
| 6000 Vdc | 0.8 Adc | 1.6 Adc | 2.5 Adc | 4.1 Adc | 8.3 Adc | 16.4 Adc | 1700 mVrms |
Tailor System Performance to Your Hardware Interface
Select factory-integrated hardware options to customize communications, cooling, transient response, and electrical isolation.
+WC — Water Cooling
Replaces fan air cooling with a closed-loop internal heat exchanger, optimal for cleanrooms, sealed test cabinets, and high ambient temperature installations.
+BD — Integrated Blocking Diode
Protects power supply outputs against high back-EMF from inductive loads, battery bank back-feed, and motor drive testing up to max voltage ratings.
+ISO — High Isolation Output
Extends output ground isolation up to ±3,000 Vdc + Vo/2 for floating series configurations or high-voltage reference testing.
+HS — High Slew Rate Output
Low-capacitance output filter stage achieving fast rise times under 5 ms for transient dynamic pulse testing and hardware-in-the-loop (HIL) simulation.
+LXI — LXI TCP/IP Ethernet
Certified LXI Class C Ethernet port for automated remote control over local network infrastructures via web browser or SCPI commands.
+GPIB — IEEE-488 Interface
Adds legacy IEEE-488 GPIB communication interface for straightforward integration into existing legacy ATE test system racks.
Proven Deployment in World-Class Engineering Facilities
Engineered for extreme reliability, the TS Series supports rigorous production and laboratory operations globally.
Electric Vehicle Powertrain & Battery Cycling
Provides high-current DC bus power for traction inverter endurance testing, EV battery pack emulation, and DC fast charger validation.
Particle Accelerator & Electromagnet Power
High-stability current regulation for driving quadrupole, dipole, and steering magnets in physics research and medical synchrotrons.
Semiconductor & SiC / GaN Burn-In
Continuous full-power supply for wide-bandgap device testing, high-voltage component endurance racks, and burn-in test chambers.
Industrial Electrolysis & Surface Treatment
High-current, continuous duty operation for hydrogen generation, electroplating, anodizing, and industrial plasma processing systems.
Discuss Your Power Requirements with Our Engineering Team
Send your required voltage, current, cooling method, and application parameters to receive custom technical drawings, configuration support, and formal commercial proposals.
