MT Series: 150 kW & 250 kW High-Power Programmable DC Power Supplies
Scalable to 3,000 kW+ (3 MW) for Megawatt-Class Industrial, Aerospace, and Renewable Energy Test Systems.
Industrial Megawatt DC Power Processing with Built-In Grid Protection

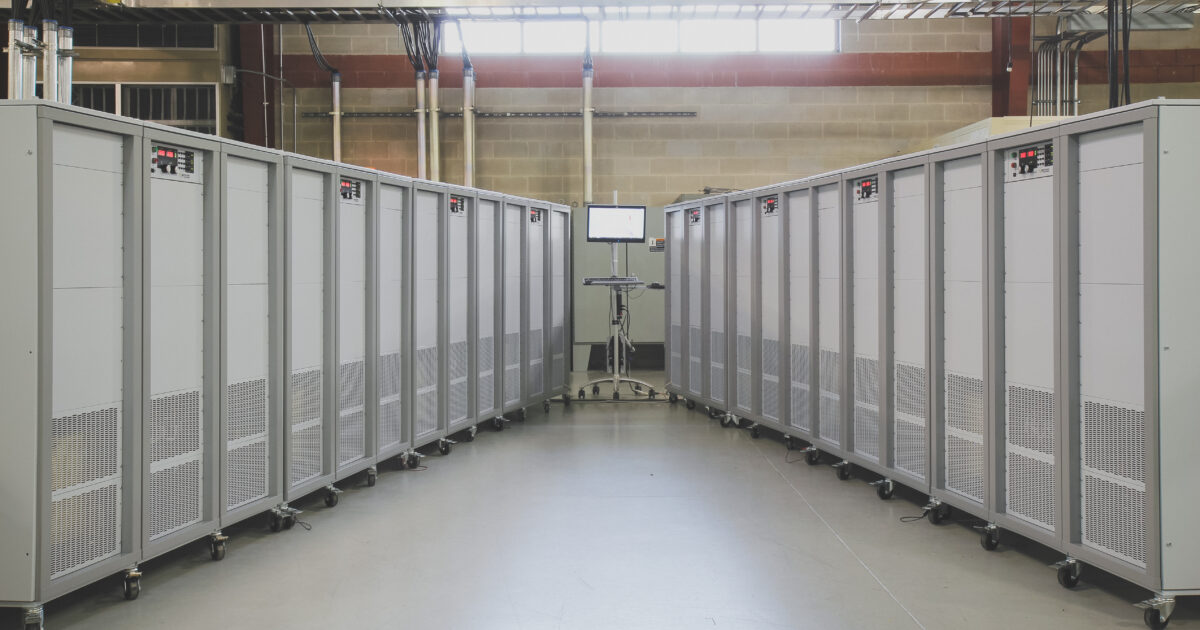

The MT Series integrates high-frequency IGBT current-fed power conversion with heavy-duty floor-standing cabinet packaging. Built in Flemington, New Jersey, USA, MT Series units deliver single-cabinet power ratings of 150 kW and 250 kW, expanding seamlessly to over 3,000 kW+ via master-slave parallel operations.
Current-Fed IGBT Topology
Utilizes an inductive energy storage bus to naturally suppress arc discharge and load fault current transients. Delivers robust continuous operation across severe dynamic load environments without catastrophic switch failures.
Harmonic Neutralization
Standard embedded 12-pulse harmonic neutralizers on 250 kW models (with optional 24-pulse and 48-pulse external units) suppress 5th and 7th order harmonics, ensuring compliance with strict IEEE 519 grid power quality standards.
UID47 Master-Slave Control
Allows uniform high-power expansion up to 3,000 kW+. Paralleled stacks respond as a single integrated instrument driven by one central control loop without complex external programming logic.
MT Series Voltage & Current Output Configurations
Each MT Series power supply is manufactured with heavy-duty AC input breakers, digital front-panel controls, and isolated user I/O ports. Select from 49 standard models ranging from 32 Vdc up to 6000 Vdc.
| Max Voltage (Vdc) | 150 kW Model (Adc) | 250 kW Model (Adc) | 500 kW Paralleled (Adc) | Ripple (mVrms) | Full-Load Efficiency |
|---|---|---|---|---|---|
| 32 Vdc | 4500 A | — | — | 40 mV | 90% |
| 50 Vdc | 3000 A | 5000 A | 10000 A | 50 mV | 91% |
| 100 Vdc | 1500 A | 2500 A | 5000 A | 60 mV | 91% |
| 250 Vdc | 600 A | 1000 A | 2000 A | 130 mV | 92% |
| 500 Vdc | 300 A | 500 A | 1000 A | 220 mV | 92% |
| 1000 Vdc | 150 A | 250 A | 500 A | 400 mV | 92% |
| 2000 Vdc | 75 A | 125 A | 250 A | 800 mV | 92% |
| 4000 Vdc | 36 A | 60 A | 120 A | 1100 mV | 92% |
| 6000 Vdc | 25 A | 41.6 A | 83.2 A | Consult Factory | 92% |
Note: 500 kW, 750 kW, and multi-megawatt outputs are configured by master-slave paralleling 250 kW MT Series models. Input mains supporting 380/400 Vac, 415 Vac, 440 Vac, or 480 Vac (3-Phase, 50/60 Hz) standard.
Detailed Electrical & Operational Performance Specifications
Built for international test facilities, automotive proving grounds, and defense applications. All instruments undergo 100% full-power burn-in prior to shipment.
Programming Accuracy
Voltage: ± 0.075% of max output rating
Current: ± 0.075% of max output rating
OVT / OCT Limits: ± 0.075% of max output rating
Readback Accuracy
Voltage Readback: ± 0.2% of max rated voltage
Current Readback: ± 0.2% of max rated current
Resolution: 16-bit DAC programming & measurement
Regulation & Stability
Line Regulation: ± 0.004% Voltage / ± 0.02% Current
Load Regulation: ± 0.01% Voltage / ± 0.04% Current
Stability: ± 0.10% over 8 hours after warm-up
Dynamic Slew Rate
Standard: < 170 ms (Voltage 0–63%), < 200 ms (Current 0–63%)
+HS Option: < 5 ms (Voltage 0–63%), < 10 ms (Current 0–63%)
High Slew Rate Bandwidth: Up to 60 Hz
Isolation & Security
Standard Isolation: ±1000 Vdc output to ground
+ISO Option: Up to ±6000 Vdc output to ground
Protections: Over-voltage, Over-current, Thermal trip, Phase loss
Physical & Environment
Operating Temp: 0°C to 50°C continuous duty
150 kW Enclosure: 67" H x 48" W x 31.5" D (2100 lbs)
250 kW Enclosure: 67" H x 72" W x 31.5" D (3300 lbs)
Integrated Hardware Options & System Accessories
Tailor MT Series DC power supplies to specific test environments, automated production lines, or hardware-in-the-loop (HIL) simulation racks.
High Isolation Output (+ISO)
Extends output isolation up to ±6000 Vdc relative to ground for models rated between 250 Vdc and 1000 Vdc. Ideal for stacking multiple units in high-voltage series strings.
High Slew Rate Output (+HS)
Replaces standard output capacitance with low-capacitance film arrays for high-speed dynamic voltage transients, enabling Hardware-in-the-Loop (HIL) battery and fuel cell simulation.
Integrated Blocking Diode (+BD)
Provides internal heavy-duty reverse-voltage protection on the positive output terminal. Essential when powering highly inductive loads, battery cycling systems, or motor drives.
Digital Interfaces (+LXI & +GPIB)
Equip your instrument with LXI Class C TCP/IP Ethernet interface or standard IEEE-488 GPIB port, supplementing the standard SCPI RS-232 and isolated 37-pin DB37 User I/O.
DBx High-Stability Module
An external sub-system add-on providing stability under 10 ppm with up to 24-bit control resolution. Reduces current ripple by 10x for precision magnet and particle beam steering.
BDx 1U Blocking Diode Module
Standalone rack-mount blocking diode module supporting high-current and high-voltage DC lines with dedicated cooling, fault monitoring, and remote sensing passthrough.
Tested and Deployed in Advanced Global Infrastructure
Hypersonic & Plasma Arc Heaters
MT Series cabinets supply continuous multi-megawatt arc heating power, absorbing extreme current transients without shutdown or core saturation.
EV Powertrain & Traction Inverter Validation
High-power DC bus supply for traction motor testing, battery emulators, and high-capacity fast DC charging station development.
Solar Inverter & Grid Emulation
Combined with PPPE software, MT Series instruments simulate massive multi-megawatt photovoltaic arrays for MPPT efficiency tracking.
Ready to Specify the MT Series for Your Megawatt Project?
Download complete technical datasheets, CAD drawings, and application guides for international engineering compliance.
