Engineered for rigorous quality assurance, dynamic load testing, harmonic analysis, and continuous burn-in across appliance, industrial drive, and solar inverter lines.
An authoritative analysis of pulse-width modulation (PWM) verification, harmonic distortion mitigations, and dynamic load testing for variable frequency drives (VFDs).
In modern industrial power electronics, the inverter serves as the foundational processing unit converting Direct Current (DC) to alternating current (AC) with precise amplitude and frequency control. As global power conversion requirements migrate rapidly toward wide-bandgap (WBG) semiconductors—such as Silicon Carbide (SiC) and Gallium Nitride (GaN)—the operational demands on test and measurement instruments have intensified exponentially. Manufacturing units in major industrial corridors, particularly the Kansai manufacturing hub in Osaka, Japan, require robust, highly resistant testing architectures capable of capturing microsecond transient anomalies, high-voltage dv/dt stress points, and complex total harmonic distortion (THD).
Engineering Principle: Inverter testing requires strict isolation between the low-voltage micro-controller signals and high-power drive outputs. Utilizing isolated channel power meters and differential voltage probes prevents ground loop currents from skewing switching loss measurements during high-frequency carrier modulation.

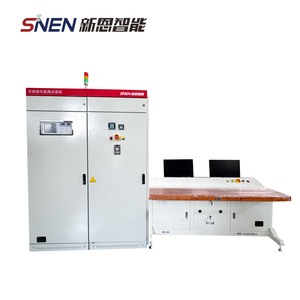

Standard voltage-fed inverter topologies generate pulse-width modulated waveforms characterized by steep rise and fall times. Evaluating these wave parameters demands an inverter performance test bench with low stray inductance and sub-nanosecond response times. Below is a structured engineering breakdown contrasting field-level diagnostic equipment with automated factory test benches:

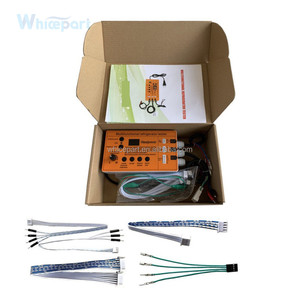

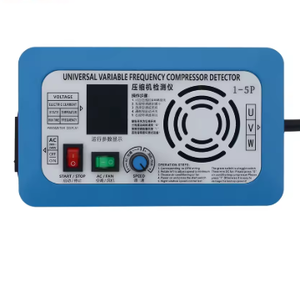

Designed for field technicians servicing HVAC units and consumer electronics. Portable units like the JCS-01 or 1-3HP Compressor Detectors prioritize direct drive simulation, low power consumption, quick fault isolation, and ruggedized physical protection against harsh field environments.

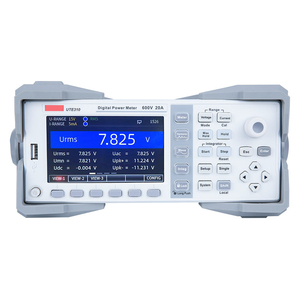

Units such as the 1000V 50A Power Meter and FEW3000 emphasize harmonic spectrum decomposition up to the 50th harmonic order. Essential for verifying IEEE 519 compliance and evaluating grid-tie compliance in solar PV and wind inverters.
Fully integrated test rigs built into mass production assembly lines. These systems execute automated functional test protocols, thermal cycling under continuous full load, IPM gate drive checks, and automated SCPI data logging within seconds per unit.
One of the primary difficulties in evaluating Variable Frequency Drives (VFD) and inverter motor drives is accurately computing true power in the presence of non-sinusoidal voltage waveforms. Conventional multimeters register significant measurement drift due to the high-frequency carrier signals (typically 2 kHz to 20 kHz, and up to 100 kHz in SiC topologies).

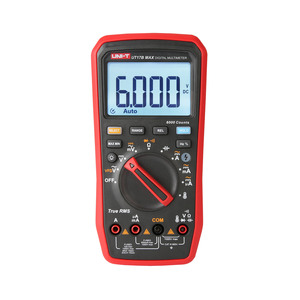

By implementing digital low-pass filtering algorithms (as seen in True RMS VFD Multimeters like the UT17B MAX) and phase-locked loop (PLL) tracking on fundamental frequencies, specialized inverter testers isolate the true power delivered to the motor stator windings, eliminating fake capacitive current spikes caused by long motor cable connections.
Supporting Osaka's rich manufacturing ecosystem—from world-leading HVAC producers in Sakai to precision electronics in Higashiosaka and green energy grids across Kansai.

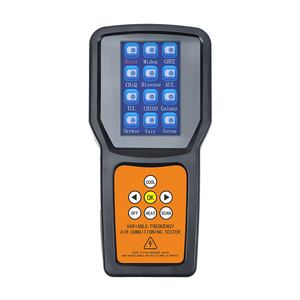

Osaka serves as the global headquarters for premier heat pump and air conditioning manufacturers. Our dedicated HVAC outdoor unit inverter testers and 1-3HP compressor detectors facilitate rapid diagnostic screening during assembly line quality checks and field service operations, ensuring variable-speed compressors operate without phase mismatch or IPM overheating.
Higashiosaka's dense cluster of precision machining and auto-part suppliers is actively transitioning into Electric Vehicle (EV) drive system components. High-power 1000V 50A power analyzers with dynamic torque synchronization enable automotive engineers to stress-test traction inverters under rapid acceleration curves and regenerative braking energy feedback.

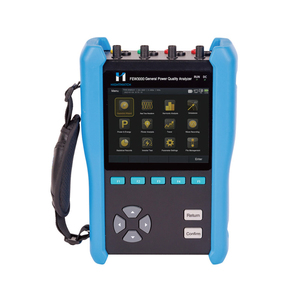

Osaka Bay’s large solar installations and industrial microgrids rely on commercial grid-tie solar inverters. The FEW3000 PV Inverter Analyzer evaluates real-time Maximum Power Point Tracking (MPPT) performance, measures power factor deviations, and ensures zero harmonic contamination into the local 60Hz grid power system.
How the shift toward green energy, SiC power modules, and automated factory robotics is shaping the future of inverter testing equipment in Japan.
Kansai-based semiconductor R&D centers are rapidly replacing silicon IGBTs with Silicon Carbide (SiC) MOSFETs. This migration elevates switching frequencies from 10kHz to over 100kHz, demanding test instrumentation with sampling speeds exceeding 100 MS/s to catch transient overvoltage spikes during dead-time switching transitions.
With Osaka hosting international sustainability initiatives, regional OEMs face strict energy efficiency regulations (such as top-runner appliance standards). Test equipment must now offer sub-watt precision when measuring inverter standby loss and multi-stage part-load efficiency curves.
Labor shortages across Japanese manufacturing facilities have accelerated automated test cell deployment. Modern inverter test benches export raw telemetry via Ethernet/LXI, USB, and Modbus protocols directly into MES systems for statistical process control (SPC) and full product traceability.
Combining vertical integration, stringent quality assurance, and international export logistics to deliver reliable inverter test instruments globally.
From internal PCB SMT assembly and magnetics winding to custom enclosure fabrication, our manufacturing facility maintains full operational control over every assembly phase. This ensures strict adherence to ISO 9001 quality management and reduced production lead times.
Our heavy-duty test benches utilize a current-fed power architecture featuring inductive bus storage rather than purely capacitive storage. This design provides natural immunity against load short-circuits, arcing, and inductive kickback common in high-power motor drive testing.
Strategically structured export protocols ensure hassle-free customs clearance, standardized sea/air freight packaging, and full compliance with regional electrical safety standards (including CE, UL, and JIS compliance documentation).
Addressing technical specifications, calibration certificates, OEM customization, and delivery options for Japanese and international procurement teams.
Yes. Our universal diagnostic instruments (such as the JCS-01 and HVAC Inverter Testers) support wide operating input ranges from 110V to 240V AC at both 50Hz (Eastern Japan) and 60Hz (Western Japan / Kansai region) power frequencies without requiring manual selector switches.
Absolutely. Specialized units like the 1000V 50A Industrial Power Meter and UT17B MAX Multimeter feature digital low-pass filtering (VFD filter mode). This prevents high-frequency PWM switching noise from corrupting voltage, current, and fundamental frequency measurements.
Every tester undergoes 100% full-power burn-in and calibration against standard reference instruments traceable to international standards (ISO/IEC 17025 compliant). Detailed test reports, factory inspection sheets, and CE compliance certificates are enclosed with every order shipped from our export warehouse.
Yes. We support custom ATE software development and system integration. Our automated functional test solutions expose SCPI command sets, LabVIEW drivers, and Modbus communication channels for seamless integration into custom automated production jigs.
Standard field diagnostic units and meters are typically available from ready-to-ship inventory with 3-5 business day fulfillment. Custom performance test benches and high-power EOL test systems require a standard 4-6 week build time from drawing approval.
Consult with our senior application engineers to discuss your voltage range, sampling bandwidth, carrier frequency, and automated testing requirements today.
