Direct factory supply of single-core, twin-core, XLPO-insulated, and LSZH high-performance direct current conductors engineered for zero downtime in tropical operational environments.
Vietnam's rapid power infrastructure scaling under National Power Development Plan VIII (PDP8) demands DC wiring solutions that resist high humidity, saline atmospheric mist, and intense solar irradiation.

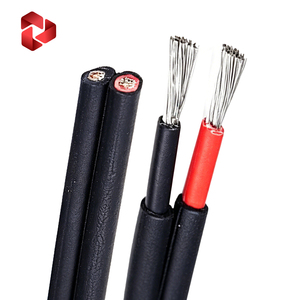

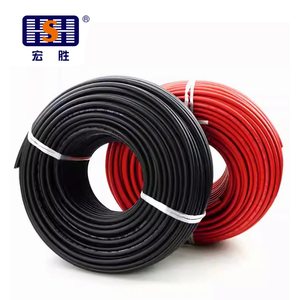

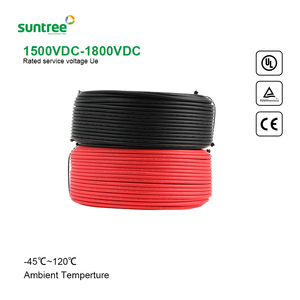

Southern and Central Vietnam experience extreme UV index surges and ambient soil temperatures exceeding 45°C. Our H1Z2Z2-K and PV1-F solar wires utilize double-layer cross-linked polyolefin (XLPO) jackets capable of continuously operating at 120°C conductor temperatures without jacket embrittlement or insulation breakdown.

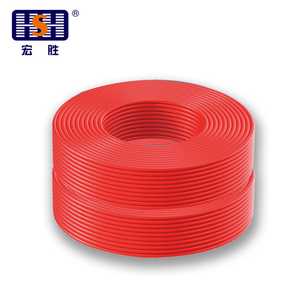

Manufacturing complexes across Northern and Southern industrial parks require Low Smoke Zero Halogen (LSZH) standard DC cabling to meet stringent fire safety standard QCVN 06:2022/BXD. In the event of thermal exposure, our cables release zero corrosive acid gases and produce minimal non-opaque smoke.

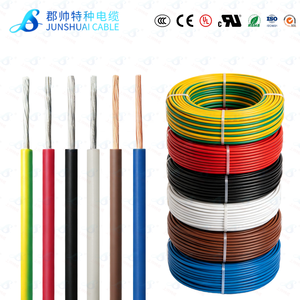

With Vietnam's rapid EV rollout across national highways and urban hubs like Hanoi, Da Nang, and Ho Chi Minh City, high-capacity ultra-fast DC charging demands UL11627 2000V rated flexible cables. Our high-gauge stranded tinned copper wires ensure minimal resistance and ultra-low thermal dissipation during fast-charge cycles.
Technical analysis on why standard copper conductors and PVC jackets fail prematurely in Southeast Asian coastal solar arrays and industrial environments.
Vietnam features over 3,200 kilometers of coastline where relative humidity averages between 80% and 95% annually. In direct current (DC) systems, small current leakages combined with moisture penetration lead to rapid electrolytic galvanic corrosion. Standard copper conductors rapidly oxidize into copper oxide ($Cu_2O$), increasing contact resistance at connectors and string boxes, leading to localized hotspot generation and thermal runaway risks.
Our factory utilizes a precision hot-dip tinning process yielding a uniform tin barrier layer (minimum thickness 15 μm) conforming to IEC 60228 Class 5 stranding standards. The tin plating passivates the copper surface, eliminating oxidation caused by sulfur and atmospheric moisture, while maintaining high flexural life for tracking mounts and floating solar arrays (FPV) on reservoirs such as Da Mi and Tri An.
Conventional PVC or standard rubber cabling degrades rapidly under exposure to tropical ultraviolet (UV-A and UV-B) wavelengths. Our high-voltage DC cables undergo high-energy electron-beam irradiation cross-linking. This physical process transforms linear molecular chains into a 3D net-like molecular architecture:
Standard engineering charts rate cable current capacity at 30°C ambient temperatures. In Vietnam's summer months, ambient rooftop and conduit temperatures frequently reach 50°C to 60°C. Below is our engineering ampacity derating guide to ensure safe cable selection without nuisance thermal trips or insulation degradation:
| Cable Size (mm²) | Nominal Ampacity (30°C Air) | Derated Ampacity (45°C Air) | Derated Ampacity (60°C Rooftop/Conduit) | Voltage Drop per 100m @ 10A (DC) |
|---|---|---|---|---|
| 2.5 mm² | 33 A | 27.7 A | 20.1 A | 1.48 V |
| 4.0 mm² | 44 A | 36.9 A | 26.8 A | 0.92 V |
| 6.0 mm² | 57 A | 47.8 A | 34.7 A | 0.61 V |
| 10.0 mm² | 79 A | 66.3 A | 48.1 A | 0.36 V |
| 16.0 mm² | 107 A | 89.8 A | 65.2 A | 0.23 V |
Combining world-class vertically integrated production lines with streamlined ASEAN customs clearing for seamless delivery across Ho Chi Minh, Da Nang, and Haiphong.
Every meter of our DC cable passes through dynamic inline spark testing (up to 10kV) during extrusion. Completed master reels undergo 24-hour water immersion dielectric withstand testing at 3000V AC before shipment to guarantee zero insulation micro-voids.
We provide fully compliant ASEAN-China Free Trade Area Certificate of Origin (Form E) documentation. Vietnamese buyers benefit from preferential 0% import duty rates, drastically lowering landing costs for solar contractors and industrial panel builders.
Reduce field labor costs with pre-cut project lengths, specialized meter marking, custom drum packaging (wooden, steel-corrugated), and specialized jacket colors (Red, Black, Blue) tailored to your array string identification needs.
Our dedicated export logistics desk manages containerized freight shipments directly to Cat Lai Port (Ho Chi Minh City), Haiphong Port, and Da Nang Port with typical transit timelines under 7 to 10 business days from order completion.
Everything you need to know regarding technical compliance, customs clearance, ordering thresholds, and field performance in Vietnam.
Connect directly with our senior application engineers. We provide instant technical datasheets, compliance certificates, custom drum pricing, and Form E tariff estimates for your upcoming project.
