Custom OEM/ODM manufacturing standards meeting IEC 60076, IEEE C57, and ISO9001 global engineering requirements.
As a leading premier OEM/ODM High Voltage exporter & exporters, our manufacturing ecosystems combine fully vertically integrated design with sophisticated electrical engineering. Operating decades of dedicated high-voltage power processing development, we bridge the complex gap between custom client engineering requirements and global utility grid reliability standards.
Unlike standard equipment assemblers, our vertically integrated manufacturing facility oversees every phase of high-voltage component fabrication. From automated magnetic core stacking, vacuum pressure impregnation (VPI), and precision epoxy resin casting, to fully shielded partial discharge testing chambers—our end-to-end operational control ensures that every transformer, circuit breaker, surge arrester, and custom coil exhibits uncompromising dielectric strength and long-term operating efficiency.
Advanced power conversion utilizing current-fed inductors for natural short-circuit immunity, fault current isolation, and high voltage stability under dynamic grid loads.
Complete control over coil winding, flat copper foil geometry, toroidal cores, and APG (Automatic Pressure Gelation) resin casting for void-free insulation.
Every exported unit undergoes full-power thermal run-up tests, lightning impulse withstand verification, and automated dielectric breakdown analysis prior to dispatch.

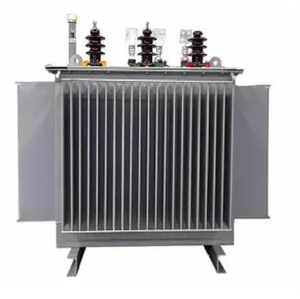

Information Gain Insight: Modern medium-voltage (MV) and high-voltage (HV) distribution networks demand low core-loss performance (exceeding EU Tier 2 Eco-design and IEEE C57 standards). Our specialized S22 and S11-M series transformers utilize high-permeability grain-oriented silicon steel cores, cutting no-load power dissipation by up to 28% compared to conventional distribution units.
The global transition toward decentralized renewable energy, massive electrification of transport systems, and energy storage infrastructure is fundamentally changing high-voltage equipment procurement priorities for utility companies, EPC contractors, and industrial conglomerates.

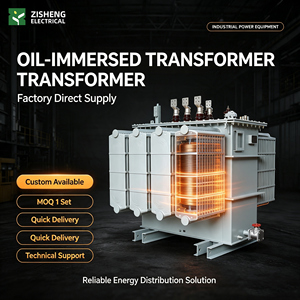

Environmental regulations (such as EU F-Gas restrictions and stringent local environmental protection standards) are accelerating the replacement of traditional mineral oils with high-fire-point synthetic ester fluids. Flame-retardant oil-immersed transformers (such as our CE-listed 500KVA 25KV series) provide self-extinguishing safety properties (K-class fluid, fire point >300°C), making them ideal for high-density urban substations, offshore wind platforms, and underground mining operations.

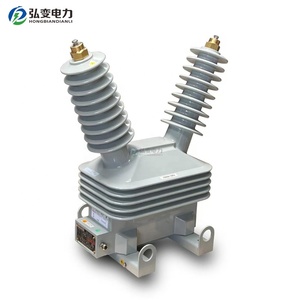

Substation digitizing standards (IEC 61850) require current and voltage transformers (CT/VT) to deliver exceptional linearity across ultra-wide dynamic ranges. Outdoor epoxy cast VTs, such as the JDZW-35R series, incorporate precision dual-winding toroidal coils designed for both revenue-grade metering protection and seamless optical interface integration into smart grid SCADA architectures.

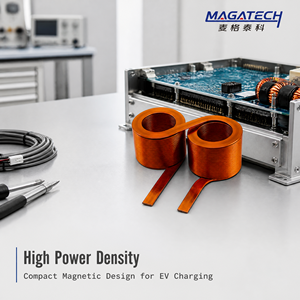

With high-power DC fast-charging networks operating at 800V to 1000V bus levels, custom magnetics like flat copper foil air-core coils and pulse transformers (EE65 high-voltage series) have become mission-critical. OEM buyers prioritize low Direct Current Resistance (DCR), high saturation current margins, and supreme high-frequency switching efficiency to reduce vehicle On-Board Charger (OBC) thermal footprints.
| Equipment Category | Primary Voltage Class | Insulation / Cooling Media | Core Technical Standard | Primary Sourcing Application |
|---|---|---|---|---|

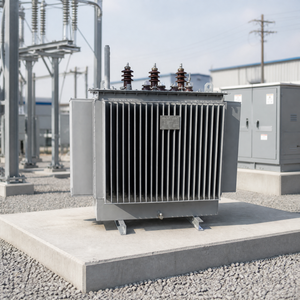

| S22 Power Transformer | 10kV / 0.4kV (Customizable) | Mineral / Synthetic Ester Oil | IEC 60076, ISO9001 | National Utility Grids, Boost Sub-stations |
| JDZW-35R Voltage Transformer | 35kV Class MV/HV | Cycloaliphatic Epoxy Resin (APG) | IEC 61869-3, IEEE C57.13 | Substation Revenue Metering & Relay Protection |
| Polymer Surge Arrester | 35kV Overhead Lines | High-Hydrophobicity Silicone Polymer | IEC 60099-4, ANSI C62.11 | Overhead Transmission Line Lightning Protection |
| EE65 Pulse Transformer | High Voltage Pulsed Isolation | Reinforced High-Voltage Bobbin | UL94 V-0, CE, RoHS | EV Chargers, High Frequency Power Conversion |
| Auto-Recloser Breaker | Up to 38kV HV Lines | Vacuum Interrupter / Solid Dielectric | IEEE C37.60, IEC 62271-111 | Smart Distribution Grid Fault Clearing |

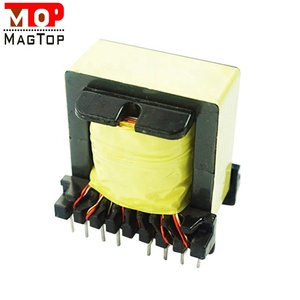

Emerging pulse transformer designs utilize multi-chamber specialized bobbins capable of handling dv/dt stress exceeding 100 kV/μs, preventing partial discharge breakdown in Silicon Carbide power circuits.

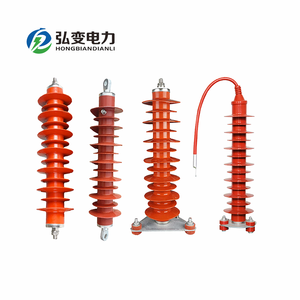

Overhead line arresters utilize silicone polymer housings formulated to resist severe UV radiation, saline coastal corrosion, and heavy industrial pollution (Class IV contamination rated).

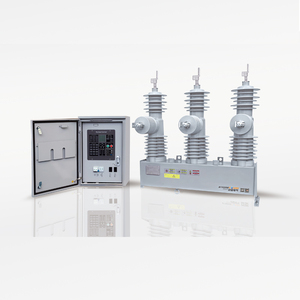

Integrating distribution automation controllers with solid dielectric vacuum reclosers enables microsecond fault detection, self-healing loop restoration, and wireless remote telemetry access.
Direct technical consultation with senior electrical design engineers. Submit your technical specifications, line diagrams, or RFQ details for rapid project quotation.
