Technical Whitepaper & Procurement Guide: Next-Generation Transformers, Rectifiers, Circuit Breakers & Hall Transducers for Global Grid Infrastructure

Precision Electrical Equipment

Engineered High-Current Components Catalog

Direct Factory Sourcing Solutions with ISO9001, CE, and IEC 61869 Compliance

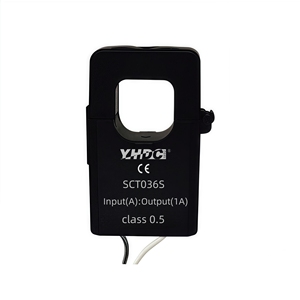

YHDC SCT036S Split Core Current Transformer

YHDC SCT036S(0.5%) High Precision Split Core Current Transformer

Accuracy Class: 0.5% Grade Output Rating: 1A Output (50-60Hz) Installation: Free Hanging Power Monitoring
Send an Inquiry

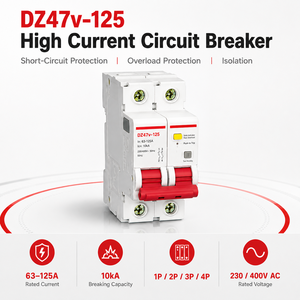

DZ47v-125 High Current Circuit Breaker MCB

DZ47v-125 High Current Circuit Breaker MCB 1P 2P 3P 4P

Current Range: 63A, 80A, 100A, 125A Voltage & Capacity: 230V/400V AC, 10kA Curve & Mounting: C/D Curve DIN Rail
Send an Inquiry

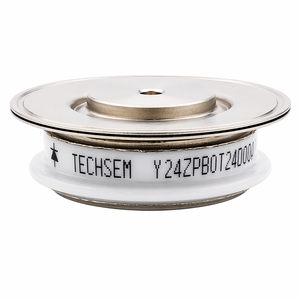

TECHSEM Industrial High Current Rectifier Diode

Original TECHSEM High Current Rectifier Y24ZPB Disc Diode

Ratings: 860A Continuous / 1400V VRRM Package Type: Industrial Disc / Capsule Application: Heavy Welding & Electroplating
Send an Inquiry
Hall Effect Closed Loop Current Sensor 1000A

CM4A H06 Series Closed Loop Hall Current Sensor 1000A

Primary Current: 1000A RMS Continuous Technology: Closed Loop Hall Effect (LF 1005) Response Bandwidth: DC to 150kHz High Linear
Send an Inquiry
LZW32-10 Outdoor HV Current Transformer

Outdoor High Voltage Current Transformer LZW32-10 12KV

Rated Voltage: 12kV Outdoor Substation Ratio Range: 200-400-600/5A Dual Core Compatibility: Vacuum Circuit Breakers
Send an Inquiry

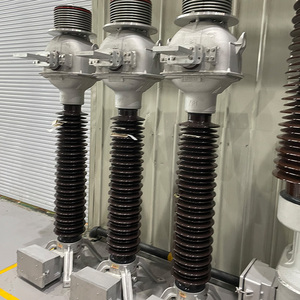

High Voltage Current Transformer 35kV to 220kV

Outdoor Substation HV Current Transformer 35kV~220kV

System Class: 35kV to 220kV Transmission Primary Current: Up to 5000A Continuous Insulation: Oil-Immersed / SF6 Gas / Resin
Send an Inquiry

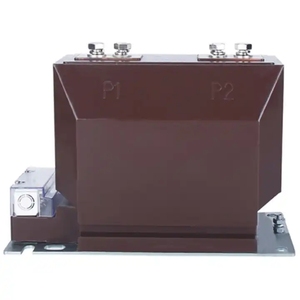

10KV Indoor Cast Resin Current Transformer

10KV Cast Resin Current Transformer LZZBJ9-10 / LZZBJ9-12

Rated Insulation: 10kV - 12kV Indoor Thermal Dynamic Rating: 31.5kA / 1s Application: Switchgear Protection & Metering
Send an Inquiry

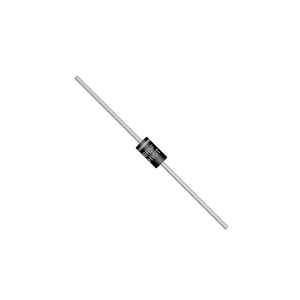

High Voltage Fast Recovery Diode BR5F

High Voltage Medium & High Current Diodes BR5F 5KV 100nS

Reverse Voltage: 5kV Peak Repetitive Average Current: 600mA Fast Recovery Reverse Recovery: Trr ≤ 100nS Ultra Fast
Send an Inquiry
99.85%
First-Pass Yield Rate
>10kA
Short-Circuit Test Rig
<5 pC
Partial Discharge Level
50+
Export Nations Certified

1. Technical Architecture of High-Current Components in Modern Power Infrastructure

High-current electrical systems form the backbone of modern power distribution, renewable energy integration, electric vehicle (EV) supercharging networks, and heavy industrial automation. Designing, manufacturing, and deploying components that handle continuous currents from 100A up to 5000A+ at voltages ranging from 230V to 220kV requires rigorous materials science, advanced electromagnetic modeling, and absolute adherence to thermal withstand metrics.

Chinese OEM/ODM manufacturing clusters have evolved from standard low-voltage component assembly to world-class engineering hubs. Today's premier Chinese high-current suppliers utilize high-permeability nanocrystalline core materials, automated resin-casting chambers under vacuum pressure, and advanced power semiconductor wafer fabrication techniques to meet global utility standards such as IEC 61869-2, IEEE C57.13, and IEC 60947-2.

Nanocrystalline Core Efficiency

Enables 0.5% and 0.2S accuracy classes in split-core and cast-resin CTs with lower phase shift and zero saturation under heavy grid surge conditions.

Vacuum Epoxy Encapsulation

Eliminates microscopic air voids, ensuring partial discharge (PD) ratings below 5pC at 1.2Un for 12kV to 35kV switchgear transformers.

Closed-Loop Hall Effect Response

Sub-microsecond feedback response time ($t_r < 1\mu s$) for 1000A DC/AC currents, critical for wide-bandgap SiC inverter control.

2. Engineering Benchmark Matrix: High-Current Equipment Comparison

Selecting the optimal device for current measurement, switching protection, or AC-to-DC conversion requires analyzing electrical, thermal, and mechanical parameters. The matrix below outlines operational benchmarks for key high-current product groups engineered by China's top tier suppliers.

Equipment Category Primary Voltage / Insulation Current Rating Range Accuracy / Breaking Capacity Core Technical Feature
Split Core CTs (SCT Series) 0.66kV / 3kV Insulation 50A – 1000A Secondary 1A/5A Class 0.5 / 1.0 Hinged snap-on core; zero service interruption retrofitting
High-Current MCB (DZ47v-125) 230V / 400V AC (50/60Hz) 63A, 80A, 100A, 125A 10kA Icu (IEC 60947-2) Silver-alloy contacts; dual bimetallic thermal magnetic trip
Capsule Diode Rectifiers 1400V – 4500V VRRM 860A – 5000A Continuous VFM < 1.35V @ 2000A Double-sided cold-press disc cooling for arc welders
Closed-Loop Hall Transducers Galvanic Isolation 6kV RMS 500A – 3000A DC/AC Peak Linearity < 0.1% FS Zero phase offset; high dv/dt noise immunity
Cast Resin Indoor CTs (LZZBJ9) 10kV – 12kV System Voltage 50A – 3000A Primary 10P20 Protection / 0.2S Metering 31.5kA / 4s short-time thermal current rating ($I_{th}$)
Outdoor Substation CTs (LZW32) 35kV – 220kV Overhead Grid 200A – 5000A Primary Class 0.2S / 5P20 Hydrophobic silicone rubber insulation; explosion-proof

3. Procurement & Sourcing Trends: China High-Current Manufacturing 2026–2030

As global decarbonization accelerates, electrical procurement teams are rethinking supply chain strategies. Industrial buyers are shifting from single-component purchasing to integrated high-current subsystem procurement. Several key technological and manufacturing trends define the leading Chinese factories in 2026:

A. Smart Grid & IoT Sensor Integration

Traditional passive current transformers are increasingly supplemented or replaced by smart sensor topologies. Modern indoor and outdoor CTs now incorporate embedded temperature monitoring coils, optical fiber signal transmission, and digital Modbus/IEC 61850 sampled value outputs. Split-core designs like the YHDC SCT036S allow rapid retrofit into smart distribution panels without de-energizing critical industrial feeds.

B. Thermal Management & Wide-Bandgap Semiconductor Rectification

Industrial power supplies, electrolysis units, and heavy welding systems demand ultra-efficient rectification. High-current disc diodes (such as the TECHSEM Y24ZPB) utilize advanced diffusion process silicon wafers housed in hermetically sealed ceramic press-pack housings. When coupled with water-cooled aluminum heatsinks, thermal resistance ($R_{thjc}$) is pushed below 0.015 °C/W, supporting continuous operations over 860A with minimal thermal stress.

C. High-Voltage Outdoor Substation Resilience

Extreme climate events demand elevated insulation standards for 35kV to 220kV outdoor equipment. Leading suppliers in China's Zhejiang and Jiangsu electrical belts are replacing traditional porcelain housings with multi-ring hydrophobic cycloaliphatic epoxy (APG process) and silicone rubber sheds. This design mitigates flashover risks under heavy industrial salt-spray and frost conditions, meeting IEC 61869-1 environmental class -40°C to +85°C requirements.

4. Supplier Evaluation Protocol: How to Audit a Tier-1 Chinese High-Current Factory

Ensuring operational safety and product longevity requires a robust factory evaluation process. Global procurement heads should verify five essential technical capability indicators during factory audits:

  • Raw Material Traceability: Verify suppliers utilize top-grade grain-oriented silicon steel (M4/M3 grades) or cobalt-based amorphous cores from certified steel mills, alongside 99.99% oxygen-free ETP copper.
  • Partial Discharge Testing Facility: High-voltage transformers (10kV–220kV) must undergo 100% routine testing in a shielded high-voltage laboratory to confirm PD levels stay below 5pC at test voltages.
  • Short-Circuit Withstand Validation: Confirm type-test certificates from accredited independent laboratories (such as KEMA, CNAS, or TÜV) proving thermal dynamic stability under full short-circuit conditions ($I_{dyn} = 2.5 \times I_{th}$).
  • Automated APG Casting Machines: Check for Automatic Pressure Gelation (APG) machinery for epoxy resin casting to guarantee zero air bubble formation inside high-voltage bodies.
  • Semiconductor Press-Pack Testing: For diode rectifiers, verify 100% surge current ($I_{FSM}$) clamping tests and high-temperature reverse leakage current ($I_{RRM}$) screening at 125°C junction temperature.
Procurement & Technical FAQ

High-Current Sourcing Frequently Asked Questions

Essential Answers for Electrical Engineers, OEM Buyers, and System Integrators

What is the key difference between Open-Loop and Closed-Loop Hall Effect Current Sensors?
Open-Loop Hall sensors measure the magnetic flux generated by the primary current using a magnetic core and Hall IC, offering low power consumption and lightweight structure. Closed-Loop Hall sensors (such as the CM4A H06 1000A transducer) utilize a secondary compensation winding to drive a opposing magnetic flux, maintaining zero net flux in the core. Closed-loop technology offers superior accuracy (<0.1%), faster response times (<1μs), wider bandwidth (DC to 150kHz), and excellent immunity to external electromagnetic interference.
How do I select the proper breaking capacity (Icu) for a high-current MCB like DZ47v-125?
The Ultimate Short-Circuit Breaking Capacity ($I_{cu}$) must exceed the maximum calculated prospective fault current at the installation point in your electrical panel. A 10kA rating (at 230V/400V AC) under IEC 60947-2 ensures that the circuit breaker can interrupt heavy fault currents without contact welding or explosive housing rupture. For motor starting or high inductive transformer loads, select a D-Curve trip profile (10-14 In); for general power distribution, choose a C-Curve trip profile (5-10 In).
What precautions are needed when installing Split-Core Current Transformers (SCTs)?
Never open-circuit the secondary terminals of a CT while the primary conductor is energized. An open secondary induces extremely high peak voltage spikes ($V_{peak} = \omega \cdot N_2 \cdot \Phi_m$), which can destroy internal insulation and pose severe electric shock hazards. When retrofitting with split-core units like the YHDC SCT036S, ensure the contact faces of the split core are completely clean and firmly clamped together to prevent air-gap reluctance errors that compromise 0.5% accuracy.
What parameters determine thermal derating for high-current disc rectifiers?
High-current capsule diodes (e.g., TECHSEM Y24ZPB 860A 1400V) generate substantial conduction loss ($P_{loss} = V_{F0} \cdot I_{F(AV)} + r_T \cdot I_{F(RMS)}^2$). Thermal management depends on clamping pressure (typically 8–12 kN), double-sided heatsink thermal resistance ($R_{thha}$), and ambient airflow or water cooling flow rate. Operating junction temperatures ($T_j$) must remain strictly below 125°C or 150°C (depending on diode die specs) to prevent thermal runaway and reverse voltage breakdown.
What lead times and OEM customization options are typical for Chinese CT/Breaker factories?
Standard high-current components (MCBs, split-core CTs, standard diodes) are typically available with 1 to 2-week lead times. Customized high-voltage outdoor transformers (12kV to 220kV) or special ratio cast-resin units require 3 to 5 weeks for core tooling, APG casting, and full laboratory testing. Premier Chinese manufacturers provide OEM laser marking, custom turn ratios, specialized secondary signal outputs (0-5V, 4-20mA, 1A, 5A), and custom mounting brackets upon request.
