Explore our CE-marked bench supply lineup engineered for rigorous industrial testing, academic research, electroplating, and electronics R&D.

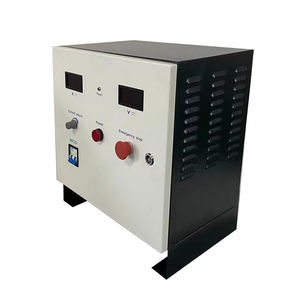

Heavy-duty industrial rectifying power source featuring dynamic voltage regulation, low ripple output, digital LED diagnostics, and overload safeguards.

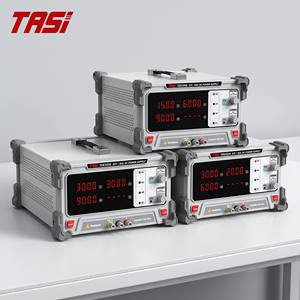

Programmable variable power source with switch-mode conversion efficiency (>85%), wide AC input tolerance, and continuous thermal management.

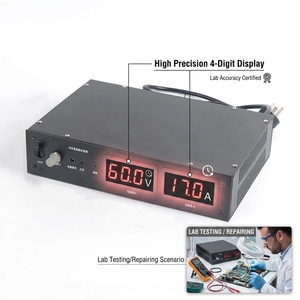

Ultra-stable switching DC supply engineered with 4-digit precision readout, ultra-low peak-to-peak noise, and fine/coarse encoder controls.

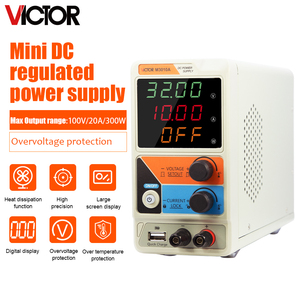

Compact benchtop regulated DC supply featuring full-color graphical screen, programmable OVP/OCP/OTP protective triggers, and quiet cooling.

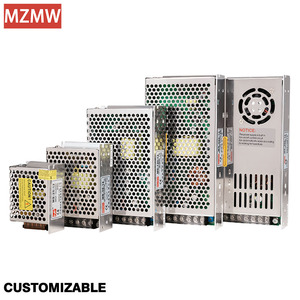

Multi-voltage AC-DC embedded bench SMPS converter (5V, 12V, 24V, 36V, 48V output options) designed for industrial automation, CCTV, and LED arrays.
Integrated electrical distribution trunking unit for laboratory island benches, providing IP44 splash-proof sockets and clean power routing.

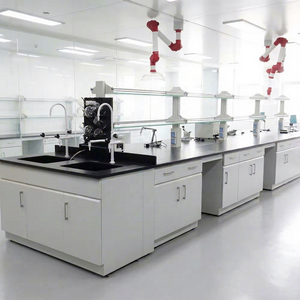

Modular steel ESD laboratory workbench architecture with integrated cable management, anti-corrosive epoxy resin top, and power channel drop-ins.

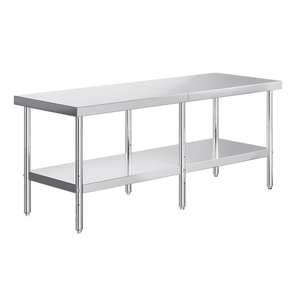

Corrosion-resistant 304 stainless steel industrial bench worktable designed for hygienic environment testing, food industry labs, and utility prep.
From raw sheet metal fabrication and precision magnetics winding to automated SMT assembly and 100% full-power burn-in validation, our OEM/ODM infrastructure ensures total quality control.
Every bench power supply is certified to strict Low Voltage Directive (LVD 2014/35/EU) and Electromagnetic Compatibility Directive (EMC 2014/30/EU), adhering to EN 61010-1 safety norms.
Our engineered power topologies feature inductive energy storage on the DC bus. This yields inherent short-circuit immunity, superior arc resistance, and fast dynamic response under heavy dynamic loading.
By executing sheet metal stamping, transformer winding, planar magnetics design, and PCB SMT under one roof, we guarantee 4–6 week lead times for custom-configured DC sources.
In modern electrical engineering, Automated Test Equipment (ATE) environments, semiconductor characterization labs, and industrial electroplating lines, the reliability of the DC power source dictates overall measurement validity and operational safety. A CE certified bench supply is far more than a simple AC-to-DC step-down transformer; it is a complex power conversion instrument governing voltage stability, thermal balance, electromagnetic interference (EMI), and transient load absorption.
Information Gain Insight: Unlike basic linear bench power supplies that dissipate excess energy as waste heat, advanced switch-mode DC bench sources utilize high-frequency Pulse Width Modulation (PWM) and resonant switch topologies to achieve continuous operational efficiencies exceeding 88% to 94% across wide power bands (300W to 100kW+).
Procurement directors and test engineering leads sourcing bench power supplies from factory suppliers must rigorously verify CE compliance credentials. CE compliance for industrial bench power equipment requires non-negotiable adherence to two core European Harmonized Directives:
Low Voltage Directive (LVD 2014/35/EU): Evaluates electrical safety, insulation breakdown strength, creepage and clearance distances, and thermal protection against fire. Under EN 61010-1 (Safety requirements for electrical equipment for measurement, control, and laboratory use), compliant bench supplies must incorporate reinforced double insulation, protective earthing terminals, and automated Over-Temperature Protection (OTP) thermal cut-offs.
Electromagnetic Compatibility Directive (EMC 2014/30/EU): Governs both emissions radiated onto local power lines and immunity to high-voltage transients. Pursuant to EN 61000-6-2 (Industrial Immunity) and EN 61000-6-4 (Industrial Emissions), premium bench supplies integrate active Power Factor Correction (PFC) circuitry (>0.98 power factor) and low-pass LC differential noise filters to prevent electromagnetic harmonic distortion from corrupting adjacent sensitive metrology equipment.
When selecting a high-power bench supply (such as 3kW plating rectifiers or 120V/100A variable sources), topology design determines longevity under harsh short-circuit conditions. Conventional voltage-fed switchers rely heavily on large electrolytic output capacitor banks. In the event of an abrupt load short or electric arc, these capacitors discharge instantaneously, often damaging both the internal power switches and the device under test (DUT).
In contrast, premium industrial bench power sources employ a current-fed power conversion architecture. By placing an energy-storing inductor on the primary DC bus prior to the inverter bridge, current rate-of-change (di/dt) is naturally choked. If a short circuit occurs at the output terminals, the supply seamlessly transitions from Constant Voltage (CV) to Constant Current (CC) mode without voltage overshoot or catastrophic semiconductor breakdown.
To assist procurement managers and systems integrators in matching application requirements with optimal hardware specs, the table below contrasts standard bench supply technology classes:
| Supply Category | Typical Output Range | Efficiency Range | Voltage Ripple (RMS) | Primary Application Profile | CE Safety Directive |
|---|---|---|---|---|---|
| Linear Regulated Bench Supply | 30W – 300W | 40% – 55% | < 0.5 mV | Low-noise audio, precision analog sensor testing, RF calibration | EN 61010-1 Class I |
| Switch-Mode Variable DC Source | 300W – 10kW | 82% – 92% | < 10 mV – 30 mV | General R&D, burn-in racks, DC motor drive evaluation, telecom | EN 61010-1 / EN 61000-6-2 |
| High-Power Plating Rectifier | 3kW – 100kW+ | 88% – 95% | < 1% Vrms | Electroplating, anodizing, water treatment electrolysis, industrial charging | EN 60146-1-1 / LVD CE |
| Modular Lab Bench Supply Trunking | 110V – 240V AC / 24V DC | 98% (Pass-through) | N/A | University laboratories, electronic workbench infrastructure, cleanrooms | EN 60364 / CE LVD |
How next-generation semiconductor physics, digital automation, and green energy standards are reshaping global power supply sourcing.
The migration from traditional Silicon MOSFETs to wide-bandgap (SiC and GaN) power switches enables switching frequencies over 200 kHz. This reduces transformer coil size by 40%, yielding lighter, 1U rack-mountable bench supplies capable of delivering 10kW in compact envelopes.
Modern manufacturing facilities require bench power sources equipped with native LAN/LXI, USB, and Modbus-TCP remote communication interfaces. SCPI-compliant software allows test scripts in Python, LabVIEW, or MATLAB to automate complex voltage sweeping profiles across automated production lines.
With the surge in electric vehicle (EV) battery testing and energy storage system (ESS) validation, bench power demand is pivoting toward regenerative DC supplies. Regenerative units act both as a programmable DC power source and an electronic load, feeding up to 95% of absorbed load energy back into the local AC grid.
Detailed answers for technical buyers, procurement teams, and plant managers evaluating CE certified bench supply manufacturers.
Consult with our power supply application engineers to configure the optimal voltage, current, and interface parameters for your project. Get instant technical datasheets, CE documentation, and direct B2B volume quotes.
